pushbutton switch

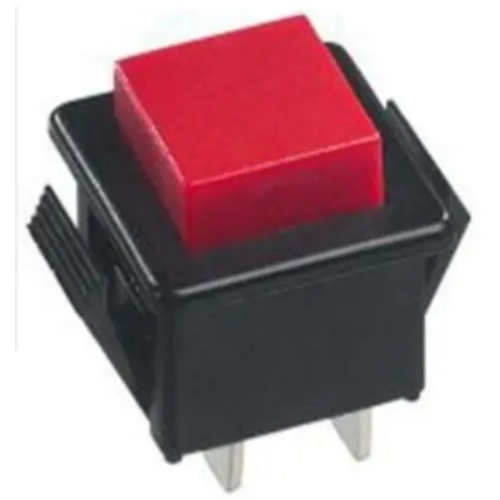

DPDT双极双位，双刀双掷自复位按钮开关APEM5
额定电流，额定电压：
  银触点按钮开关(A)：6A 12VDC
  铜镀银触点按钮开关(C) : 3A 12VDC
触点电阻：10 mΩ max.
绝缘电阻: 1000 MΩ min. at 500VDC
绝缘强度:    端子间 1,500 Vrms 50 Hz
                端子和金属面板之间  2,000 Vrms 50 Hz
电气寿命: 全负荷运行 10000次
面板厚度: 2mm
安装孔:      16.5X14.5
工作温度： -20°C to +55°C

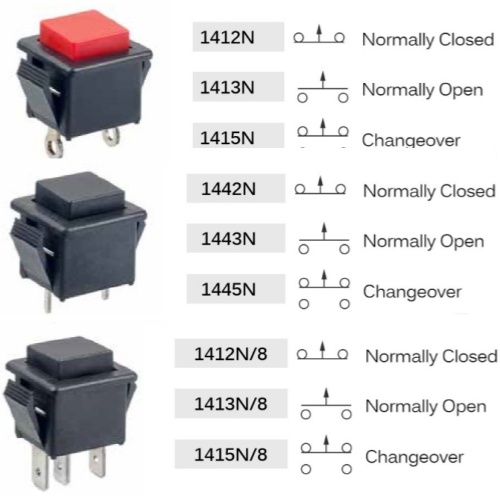

进口按钮开关型号：
焊接端子按钮开关型号:
1412N Normally Closed
1413N Normally Open
1415N Changeover
直型PC端子按钮开关：
1442N Normally Closed
1443N Normally Open
1445N Changeover
快接端子按钮开关型号：
1412N/8 Normally Closed
1413N/8 Normally Open
1415N/8 Changeover
1412N/A2 ; 1413N/A2; 1415N/A2;
1442N/A2; 1443N/A2; 1445N/A2;
1412N/8A2; 1413N/8A2; 1415N/8A2
1412N/A3 ; 1413N/A3; 1415N/A3;
1442N/A3; 1443N/A3; 1445N/A3;
1412N/8A3; 1413N/8A3; 1415N/8A3
1412N/A6 ; 1413N/A6; 1415N/A6;
1442N/A6; 1443N/A6; 1445N/A6;
1412N/8A6; 1413N/8A6; 1415N/8A6;
1412N/A7 ; 1413N/A7; 1415N/A7;
1442N/A7; 1443N/A7; 1445N/A7;
1412N/8A7; 1413N/8A7; 1415N/8A7;
1412N/C2 ; 1413N/C2; 1415N/C2;
1442N/C2; 1443N/C2; 1445N/C2;
1412N/8C2; 1413N/8C2; 1415N/8C2
1412N/C3 ; 1413N/C3; 1415N/C3;
1442N/C3; 1443N/C3; 1445N/C3;
1412N/8C3; 1413N/8C3; 1415N/8C3
1412N/C6 ; 1413N/C6; 1415N/C6;
1442N/C6; 1443N/C6; 1445N/C6;
1412N/8C6; 1413N/8C6; 1415N/8C6;
1412N/C7 ; 1413N/C7; 1415N/C7;
1442N/C7; 1443N/C7; 1445N/C7;
1412N/8C7; 1413N/8C7; 1415N/8C7;
